Alternator Brand and Model Mecc Alte - ECP 32-1L/4 C 60 Hz
Control Panel Model
Cabinet AK 20
Product Features
Engine Specifications
Alternator Features
Control Panel Features
Cabin Features
Dimensions and Weights
Tab 1
Producer
John Deere
Engine Model
3029TFG20
Cylinder and Design
3 cylinders - in line
Bore and Stroke (mm)
106 X 110
Total Cylinder Volume (L)
2.9
Compression Ratio
17.2:1
Engine Speed (rpm)
1500
Standby Power (kW/hp)
42/56
Prime Power(kW/hp)
39/52
Block Heater (Adt)
1
Block Heater Power (Watt)
500
Governor System
Mechanic
Air Filter<br>
Dry Type
Air intake
Turbo Charged
Oil Capacity (L)
8
Fuel Type
Diesel
Injection Type
Direct Injection
Fuel Pump Type
Delphi DP100G
Operating Voltage (Vdc)
12 Vdc
Battery and Capacity (Unit/Ah)
1x55
Cooling Method
Water Cooled
Coolant Capacity (engine only)l (gal)
6
Exhaust Gas Flow (m³/min)
7.3
Exhaust Back Pressure in-Hg (kPa)
7.5
Exhaust Gas Temperature ⁰C (F)
414
Total Cooling Water Capacity (l)
19.2
Cooling Fan Air Flow m³/min (ft³/min)
59.1
Fuel Consumption at 50% Prime Load l/h (kg/h)
5.27
Fuel Consumption at 75% Prime Load l/h (kg/h)
7.62
Fuel Consumption at 100% Prime Load l/h (kg/h)
9,96
Tab 2
Producer
Mecc Alte
Alternatrr Model
ECP 32-1L/4 C 60 Hz
Frequency (Hz)
60
Power (kVA)
90
Voltage (V)
480
Phalse
3
A.V.R.
DSR
Voltage Regulation
1
Insulation Class
H
Protection Class
IP23
Nominal Power Factor
0,8
Total Generator Weight (kg)
252
Cooling Air (m³/min)
18,5
Tab 3
Generator and Control Module Model
Standard Devices
Control Unit
Construction and Painting
Assembly
Options
Options Control Panel Compatibility List
Static Battery Charger
Tab 4
Canopy
AK 20
1. Steel structures 2. Emergency stop push button 3. Control panel is on the right side of the set. 4. Corrosion.resistant locks and hinges 5. Sump drains valves 6. Soundproof foam material 7. Base frame .tank
Introductıon
Sound-attenuated and weather-protective enclosures for generating sets from Aksa, meet event the sound requirements and provide optimum protection from inclement weather and development by our specialist acoustic engineers. Our modular designed sound insulated canopies provide ease of access for servicing and general maintenance and interchangeable components permitting on-site repair. Enclosures are designed to optimize genset cooling performance, providing you with confidence that genset ratings and ambient capability.
General Characteristics
Compact footprint, low profile design.
Enclosure, generator set, exhaust system and fuel tank are pre-assembled, pre-integrated and shipped as one package
Body made from steel components treated with polyester powder coating
Fire retardant foam insulation
Easy access to all service points
Exhaust system inside canopy
Large doors on each side
Control panel viewing window in a lockable access door
Emergency stop push button mounted on enclosure exterior
Cooling fan and battery charging alternator fully guarded
Fuel fill and battery can only be reached via lockable access doors.
Lifting points on the top of canopy and base frame
Customer options available to meet your application's needs.
Aksa makes its generating sets' noise level tests in accordance with directive 2000/14/EC validation of the noise level test has been approved by the notified body Szutest
Length (mm)
2101
Width (mm)
956
Height (mm)
1482
Fuel Tank Capacity (l)
70
Tab 5

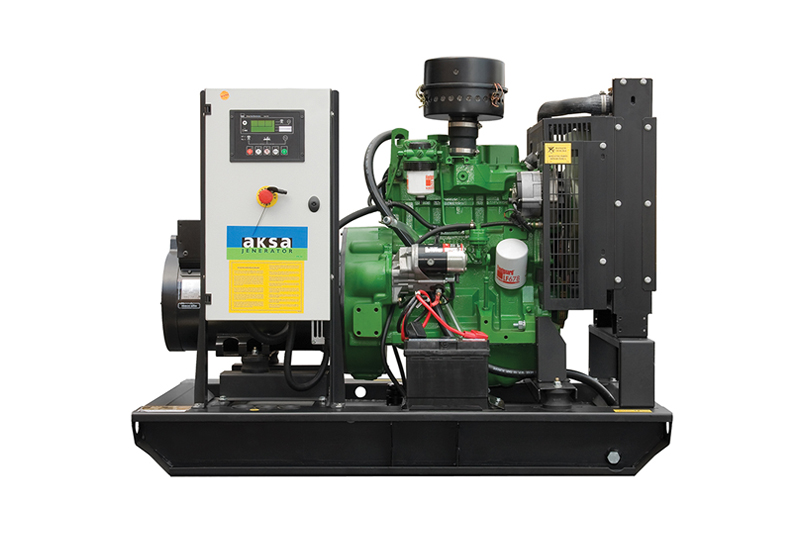

Open Group
