APB 12500-T

Producer

Engine Model

Cylinder and Design

Bore and Stroke (mm)

X

Total Cylinder Volume (L)

Compression Ratio

Engine Speed (rpm)

Standby Power (kW/hp)

Prime Power(kW/hp)

Block Heater (Adt)

Block Heater Power (Watt)

Governor System

Air Filter<br>

Air intake

Oil Capacity (L)

Max. Oil Temperature ⁰C (F)

Fuel Type

Injection Type

Fuel Pump Type

Operating Voltage (Vdc)

Battery and Capacity (Unit/Ah)

Cooling Method

Coolant Capacity (engine only)l (gal)

Exhaust Gas Flow (m³/min)

Exhaust Back Pressure in-Hg (kPa)

Exhaust Gas Temperature ⁰C (F)

Total Cooling Water Capacity (l)

Cooling Fan Air Flow m³/min (ft³/min)

Fuel Consumption at 50% Prime Load l/h (kg/h)

Fuel Consumption at 75% Prime Load l/h (kg/h)

Fuel Consumption at 100% Prime Load l/h (kg/h)

Producer

Aksa

Alternatrr Model

245x130(T)

Frequency (Hz)

50

Voltage (V)

380

Phalse

3

A.V.R.

UNKNOWN

Voltage Regulation

1

Insulation Class

H

Protection Class

IP23

Generator and Control Module Model

HGM4020CAN

Standard Devices

1. Auto Mains Failure Control Panel

Panel Equipments:

• Control with HGM module
• Static battery charger
• Emergency stop push button

A) Generating set control module HGM6120CAN features:

• Configurable via PC software or the front panel
• 5 programmable inputs (configurable for digital or analog signals)
• 4 programmable relay outputs
• Monitors 3-phase generator and mains (utility) voltage
• Event log (50 records)
• Configurable timers and alarm protection thresholds
• Automatic shutdown or alarm upon fault detection
• Supports remote start/stop and load transfer
• Engine pre-heat control (relay output)
• Precision measurement and display of engine and electrical parameters
• Engine total run time accumulation
• Red LED indicators for alarms/shutdown
• LCD display with backlight, supports 8 language interfaces
• Front panel test button
• Modular design, flush mounting

B) Metering via LCD display:

• Generator Voltage (L-L / L-N)
• Generator Current (L1, L2, L3)
• Generator Frequency (Hz)
• Generator Power (Kw)
• Generator Power Factor (COS Φ)
• Accumulated Generator Energy (kWh)
• Load Percentage (%)
• Engine Oil Pressure (kPa / psi / bar)
• Engine Temperature (°C / °F)
• Fuel Level (%)
• Battery Voltage (V)
• Charger Voltage (V)
• Mains Voltage (L-L / L-N)

C) Alarms:

• Under Speed / Over Speed
• Under Voltage / Over Voltage
• Under Frequency / Over Frequency
• Overload / Over Current / Overpower
• Low Engine Oil Pressure
• High Engine Coolant Temperature
• Low Fuel Level (Optional)
• Low / High Battery Voltage
• Emergency Stop
• Charge Fail
• Sensor Open Circuit
• Fail to Start
• ECU Communication Failure (for EFI engines)
• Maintenance Due
• Aftertreatment System Related Alarms (foraftertreatment EFI gensets)

2. Power Outlet Terminal Board Mounted on the Gen-set Base Frame

Canopy

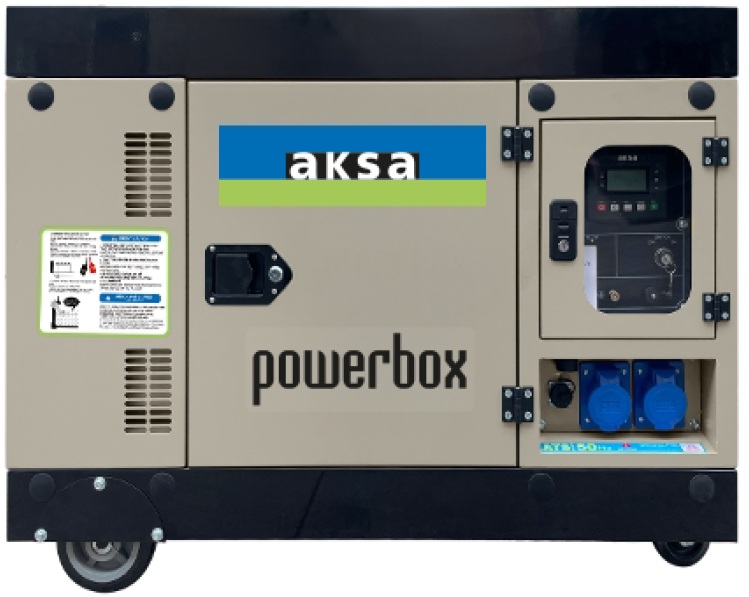

APB 12500 KABIN

Length (mm)

1130

Width (mm)

750

Height (mm)

885
