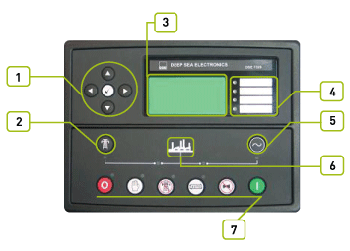

1. Menu navigation buttons 2. Close mains button 3. Main Status and instrumentation display 4. Alarm LED's 5. Close generator button 6. Status LED's 7. Operation selecting buttons
Standard Devices
DSE 7110 Auto Mains Failure control module
Static battery charger
Emergency stop push button and fuses for control circuits
Control Unit
The DSE7110 is designed to provide differing levels of functionality across a common platform. This allows the generator OEM greater flexibility in the choice of controller to use for a specific application. The DSE7110 MKII series module has been designed to allow the operator to start and stop the generator, and if required, transfer the load to the generator either manually or automatically.
The DSE7110 MKII module monitors the engine, indicating the operational status and fault conditions, automatically shutting down the engine and giving a true first up fault condition of an engine failure by the LCD display.
Construction and Painting
Components installed in a sheet steel enclosure.
Phosphate chemical, pre-coating of steel provides corrosion resistant surface
Polyester composite powder topcoat forms a high gloss and extremely durable finish
Lockable hinged panel door provides for easy component access
Assembly
Control panel is mounted to gen-set baseframe on robust steel stand or power module. Located on the side of generating set with proper panel visibility.
Microprocessor controlled
- 132 x 64 pixel LCD display makes information easy to read
- Front panel programming and also via PC software
- Soft touch membrane keypad and five key menu navigation
- Event logging (50) showing date and time
- Multiple date and time engine exercise mode and maintenance scheduler
- Engine block heater control.
- Auto start & auto maıns faılure control modules
Options
High oil temperature shut down
Low fuel level shut down
Low fuel level alarm
High fuel level alarm
Options Control Panel Compatibility List
BS 4884-1
BS 4884-2
BS 4884-3
BS EN 60068-2-1
BS EN 60068-2-2
BS EN 60950
BS EN 61000-6-2
BS EN 61000-6-4
BS EN 60529
UL508
NEMA rating
IEEE C37.2
Static Battery Charger
Battery charger is manufactured with switching-mode and SMD technology and it has high efficiency.
Battery charger models' output V-I characteristic is very close to square
2405 has fully output short circuit protection and ıt can be used as a current source.
2405 charger has high efficiency, long life, low failure rate, lightweight and low heat radiated in accordance with linear alternatives.
The charger is fitted with a protection diode across the output.
Charge fail output is available.
Connect charge fail relay coil between the positive output and CF output.
Input: 196-264V.
Output: 27,6V 5A or 13,8V 5A.
Tab 4

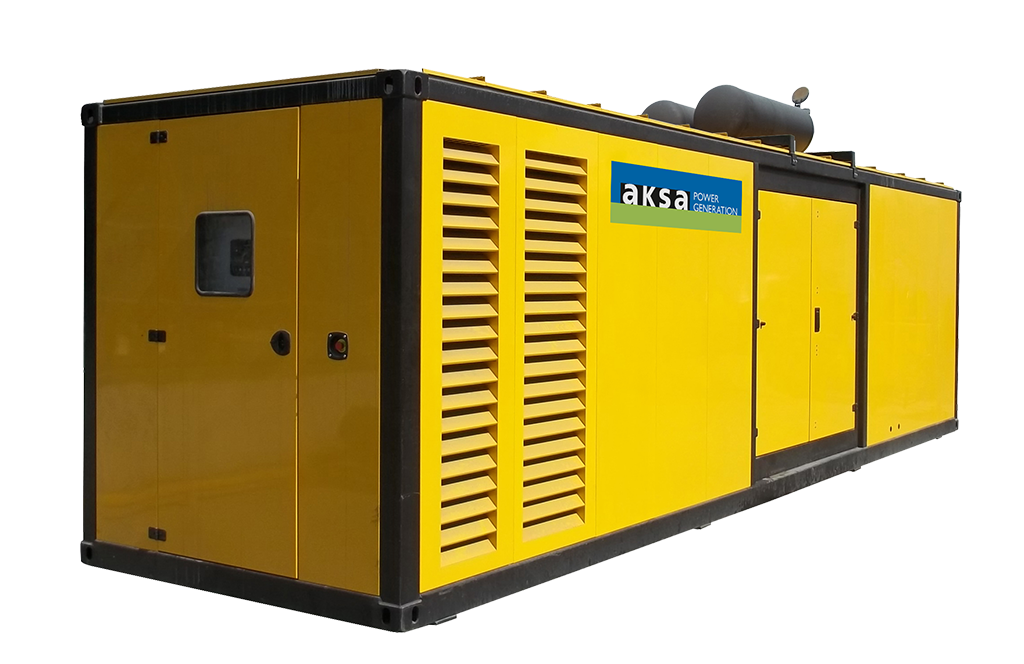

Canopy
AK 98-AP1650
Length (mm)
9000
Width (mm)
2270
Height (mm)
2648
Fuel Tank Capacity (l)
1900
Tab 5
Open Group
Cabin Group
Tab 1

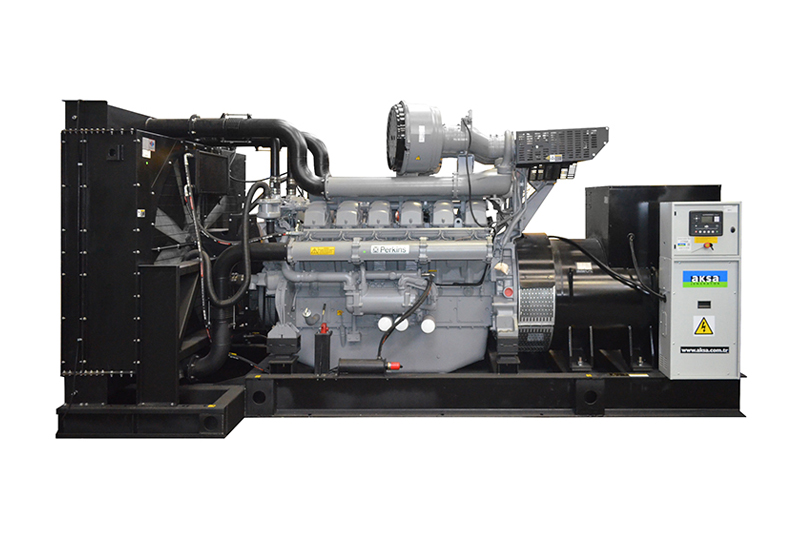

*Images are for illustrative purposes only; actual presentation may vary.
